Infinity kefová brúska

Kefová brúska, kartáčovací stroj.

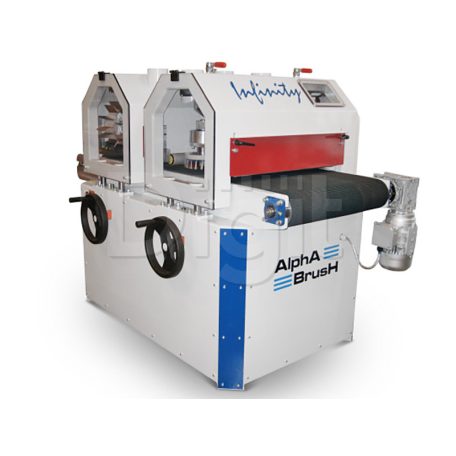

Infinity is designed with an interchangeable system, that will allow fast changing of the different units for different applications.

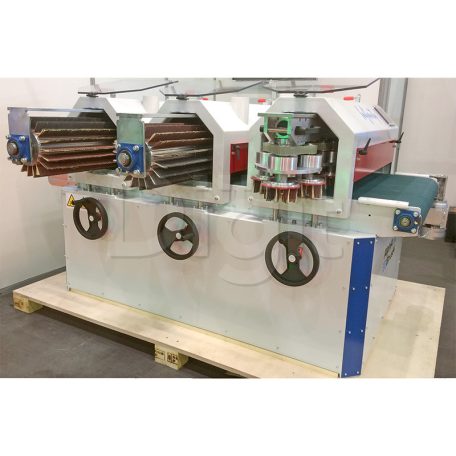

The machine comes in three different width (600, 1000 or 1350 mm) and can be supplied with one, two, three or four sanding station. The different units are easily changed by lifting up the front cover, then lifting the two handles on top & slide the unit into a trolley for easily moving or storage.

Čítaj viac

šírka

Počet brúsnych staníc

Popis

Alpha-Brush provides equipments for a wide variety of sanding and finishing applications in the wood, metal, plastic and composites industry.
The Infinity brush machine is the perfect cost-effective solution for small to medium size companies. The Infinity incorporates innovative Alpha-Brush abrasives. It is built with heavy duty motors components & frame designed for years of demanding use.

Údaje

Šírka [mm]

600, 1000, 1350

Použitie , nehnuteľnosť

top sanding, top polishing

Výrobca

Alfa-Brush

EAN číslo

INF

Brúste zložité profily a tvary

The machine has separate adjustable speed control for each unit as well as for the conveyor.
The height adjustment is acheved by turning a handwheel and measured down to 0.1 mm with electrical SIKO counters.
Infinity comes standard with 2.2 kW motors, but can be upgraded upto 11kW, depending on application.

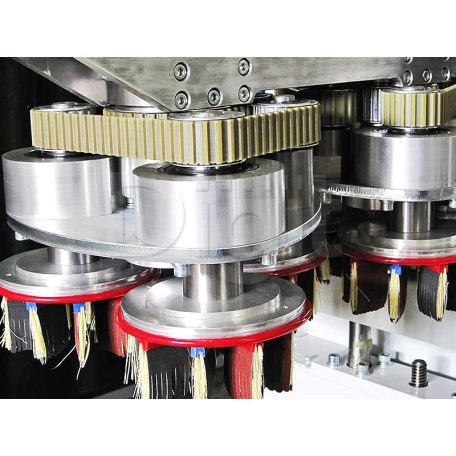

The speed and rotation of every sanding motors can be controlled independently.

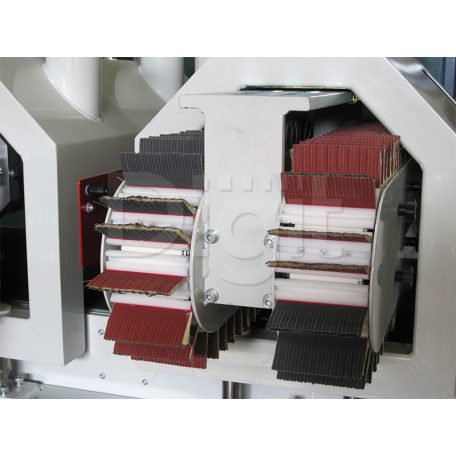

Sanding units are easily accessible for maintenance, removal and storage as required.
It is already prepared with vacuum table outlet so an external vacuum fan can easily be connected.

Technické údaje

Number of sanding stations	1 or 2 or 3 or 4
Thickness of work piece	0-100 mm
Sanding motors	2.2 kW / 3.0 HP
Speed of sanding motors	100-700 rpm
Conveyor belt width	600 or 1000 or 1350 mm ( 24”, 40”, 52” )
Conveyor belt motor	0.75 kW / 1.0 HP
Speed of conveyor belt	3-15 m/min Can be changed on request.
Machine weight	450-2000 kg
Machine dimensions (LxWxH)
Infinity 1S-600	114 x 105 x 137.5 cm
Infinity 1S-1000	114 x 145 x 137.5 cm
Infinity 1S-1350	114 x 180 x 137.5 cm
Infinity 2S-600	170 x 105 x 137.5 cm
Infinity 2S-1000	170 x 145 x 137.5 cm
Infinity 2S-1350	170 x 180 x 137.5 cm
Infinity 3S-600	235 x 105 x 137.5 cm
Infinity 3S-1000	235 x 145 x 137.5 cm
Infinity 3S-1350	235 x 180 x 137.5 cm
Infinity 4S-600	320 x 105 x 137.5 cm
Infinity 4S-1000	320 x 145 x 137.5 cm
Infinity 4S-1350	320 x 180 x 137.5 cm
